The purpose of deburring is achieved by continuously extruding and cutting the machined edge of the workpiece. FDT F-type axial floating deburring tool handle is used to remove the contour burr of height change or the burr of orifice surface.
FDT SXO f axial floating positive deburring tool

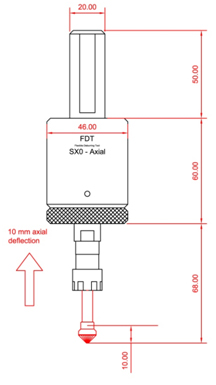

l The purpose of deburring is achieved by continuously extruding and cutting the machined edge of the workpiece. FDT F-type axial floating deburring tool has a floating range of 10mm in the axial direction, which is used to remove height changing contour burrs or orifice surface burrs.
l When in use, set the z-axis position of the tool to make the tool head close to 1-2mm below the lowest point of the workpiece surface (preload), and then the tool can automatically compensate in the height direction. So as to deburr the irregular height surface.
l Through the chuck of ER11, a rotary file with a diameter of 0.5mm-7mm on the handle of the cutting head can be added.
l Compensation capacity: up to 10mm downward
l Processing parameters:
Clockwise rotation speed: 6000-8000r / min
Feed rate: f2000-4000mm / min
l The pressure on the edge of the workpiece can be adjusted by the mechanism in the tool handle.
We are the general agent of AKS floating deburring chamfering tool handle in China to provide you with floating deburring solutions and services!
In order to better serve you, please provide the photos (indicating the chamfering area) and drawings of the workpiece for floating chamfering and deburring. We will make the appropriate tool selection for you according to our long-term processing experience!
